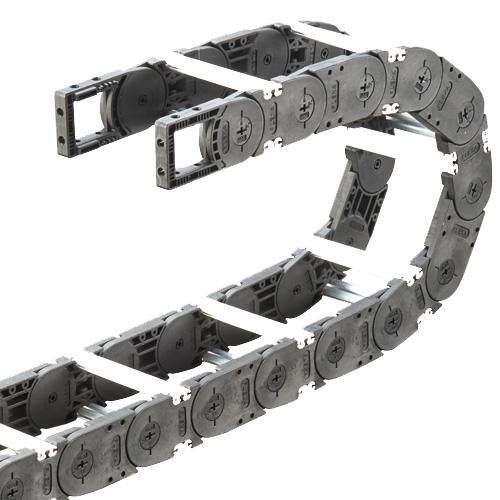

PH7 Guide chain
________________________________________________________________________________________________
|
Plastic guide chains, highly stressable, economical, easy to mount, compatible
 connections, designed for extended lifetime, inner/outer widths up to approx. 600 mm available, simple handling with standard tools, delivered in sections of 1 mtr.
Material: link plates: PA6 GFK plastics, frame bar: aluminium; Temperature: -40°C ... +135°C
|
 |

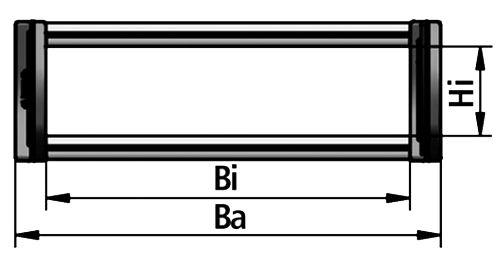

| FLEXA No. | Article | Bi [mm] | R [mm] | Ba [mm] | Bow length [mm] | Max. quant. separators | Weight [kg|m] | PU [m] |
|---|---|---|---|---|---|---|---|---|
| 6097.050.007 | PH7-50A-7F | 50,0 | 75 | 76,0 | 300 | 3 | 1,670 | 1 |
| 6097.050.010 | PH7-50A-10F | 50,0 | 100 | 76,0 | 400 | 3 | 1,670 | 1 |
| 6097.050.015 | PH7-50A-15F | 50,0 | 150 | 76,0 | 600 | 3 | 1,670 | 1 |
| 6097.050.020 | PH7-50A-20F | 50,0 | 200 | 76,0 | 800 | 3 | 1,670 | 1 |
| 6097.050.030 | PH7-50A-30F | 50,0 | 300 | 76,0 | 1200 | 3 | 1,670 | 1 |
| 6097.065.007 | PH7-65A-7F | 65,0 | 75 | 91,0 | 300 | 4 | 1,720 | 1 |
| 6097.065.010 | PH7-65A-10F | 65,0 | 100 | 91,0 | 400 | 4 | 1,720 | 1 |
| 6097.065.015 | PH7-65A-15F | 65,0 | 150 | 91,0 | 600 | 4 | 1,720 | 1 |
| 6097.065.020 | PH7-65A-20F | 65,0 | 200 | 91,0 | 800 | 4 | 1,720 | 1 |
| 6097.065.030 | PH7-65A-30F | 65,0 | 300 | 91,0 | 1200 | 4 | 1,720 | 1 |
| 6097.100.007 | PH7-100A-7F | 100,0 | 75 | 126,0 | 300 | 7 | 1,850 | 1 |
| 6097.100.010 | PH7-100A-10F | 100,0 | 100 | 126,0 | 400 | 7 | 1,850 | 1 |
| 6097.100.015 | PH7-100A-15F | 100,0 | 150 | 126,0 | 600 | 7 | 1,850 | 1 |
| 6097.100.020 | PH7-100A-20F | 100,0 | 200 | 126,0 | 800 | 7 | 1,850 | 1 |
| 6097.100.030 | PH7-100A-30F | 100,0 | 300 | 126,0 | 1200 | 7 | 1,850 | 1 |
| 6097.150.007 | PH7-150A-7F | 150,0 | 75 | 176,0 | 300 | 10 | 2,030 | 1 |
| 6097.150.010 | PH7-150A-10F | 150,0 | 100 | 176,0 | 400 | 10 | 2,030 | 1 |
| 6097.150.015 | PH7-150A-15F | 150,0 | 150 | 176,0 | 600 | 10 | 2,030 | 1 |
| 6097.150.020 | PH7-150A-20F | 150,0 | 200 | 176,0 | 800 | 10 | 2,030 | 1 |
| 6097.150.030 | PH7-150A-30F | 150,0 | 300 | 176,0 | 1200 | 10 | 2,030 | 1 |
| 6097.200.007 | PH7-200A-7F | 200,0 | 75 | 226,0 | 300 | 14 | 2,200 | 1 |
| 6097.200.010 | PH7-200A-10F | 200,0 | 100 | 226,0 | 400 | 14 | 2,200 | 1 |
| 6097.200.015 | PH7-200A-15F | 200,0 | 150 | 226,0 | 600 | 14 | 2,200 | 1 |
| 6097.200.020 | PH7-200A-20F | 200,0 | 200 | 226,0 | 800 | 14 | 2,200 | 1 |
| 6097.200.030 | PH7-200A-30F | 200,0 | 300 | 226,0 | 1200 | 4 | 2,200 | 1 |
