PL5
________________________________________________________________________________________________
|

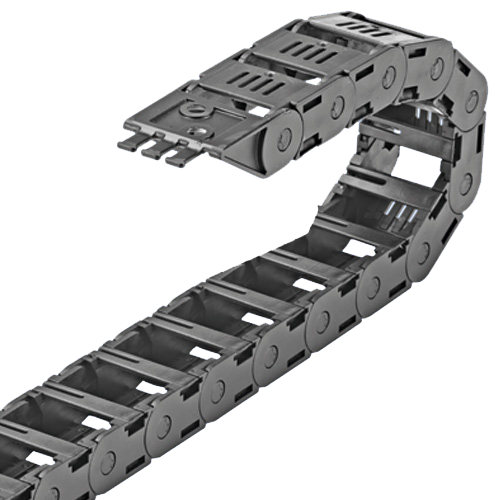

Plastic guide chains, hinged, to be opened manually, quick and easy, optimized wall
 thickness/ interior ratio, economical, extended lifetime, loadable across entire inner chain width, delivered in sections of 1 mtr. (standard)
Material: PA6-GFK plastics; Temperature: -40°C ... +135°C
|
 |

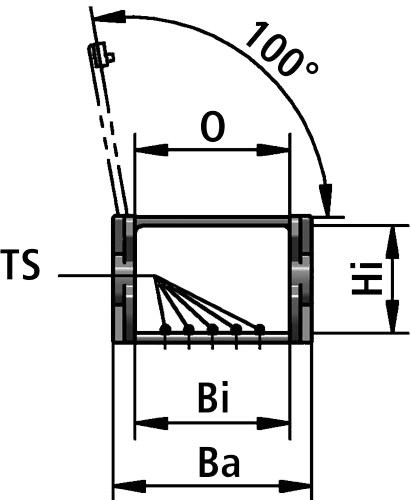

| FLEXA No. | Article | Bi [mm] | R [mm] | Ba [mm] | Bow length [mm] | Max. quant. separators | Weight [kg|m] | PU [m] |
|---|---|---|---|---|---|---|---|---|
| 6025.049.006 | PL5-49-6F | 49,0 | 60 | 63,0 | 240 | 5 | 0,950 | 1 |
| 6025.049.010 | PL5-49-10F | 49,0 | 100 | 63,0 | 400 | 5 | 0,950 | 1 |
| 6025.049.012 | PL5-49-12F | 49,0 | 120 | 63,0 | 500 | 5 | 0,950 | 1 |
| 6025.049.015 | PL5-49-15F | 49,0 | 150 | 63,0 | 600 | 5 | 0,950 | 1 |
| 6025.049.020 | PL5-49-20F | 49,0 | 200 | 63,0 | 800 | 5 | 0,950 | 1 |
| 6025.049.025 | PL5-49-25F | 49,0 | 250 | 63,0 | 1000 | 5 | 0,950 | 1 |
| 6025.061.006 | PL5-61-6F | 61,0 | 60 | 75,0 | 240 | 7 | 0,980 | 1 |
| 6025.061.010 | PL5-61-10F | 61,0 | 100 | 75,0 | 400 | 7 | 0,980 | 1 |
| 6025.061.012 | PL5-61-12F | 61,0 | 120 | 75,0 | 500 | 7 | 0,980 | 1 |
| 6025.061.015 | PL5-61-15F | 61,0 | 150 | 75,0 | 600 | 7 | 0,980 | 1 |
| 6025.061.020 | PL5-61-20F | 61,0 | 200 | 75,0 | 800 | 7 | 0,980 | 1 |
| 6025.061.025 | PL5-61-25F | 61,0 | 250 | 75,0 | 1000 | 7 | 0,980 | 1 |
| 6025.081.006 | PL5-81-6F | 81,0 | 60 | 95,0 | 240 | 9 | 1,050 | 1 |
| 6025.081.010 | PL5-81-10F | 81,0 | 100 | 95,0 | 400 | 9 | 1,050 | 1 |
| 6025.081.012 | PL5-81-12F | 81,0 | 120 | 95,0 | 500 | 9 | 1,050 | 1 |
| 6025.081.015 | PL5-81-15F | 81,0 | 150 | 95,0 | 600 | 9 | 1,050 | 1 |
| 6025.081.020 | PL5-81-20F | 81,0 | 200 | 95,0 | 800 | 9 | 1,050 | 1 |
| 6025.081.025 | PL5-81-25F | 81,0 | 250 | 95,0 | 1000 | 9 | 1,050 | 1 |
| 6025.111.006 | PL5-111-6F | 111,0 | 60 | 125,0 | 240 | 13 | 1,120 | 1 |
| 6025.111.010 | PL5-111-10F | 111,0 | 100 | 125,0 | 400 | 13 | 1,120 | 1 |
| 6025.111.012 | PL5-111-12F | 111,0 | 120 | 125,0 | 500 | 13 | 1,120 | 1 |
| 6025.111.015 | PL5-111-15F | 111,0 | 150 | 125,0 | 600 | 13 | 1,120 | 1 |
| 6025.111.020 | PL5-111-20F | 111,0 | 200 | 125,0 | 800 | 13 | 1,120 | 1 |
| 6025.111.025 | PL5-111-25F | 111,0 | 250 | 125,0 | 1000 | 13 | 1,120 | 1 |
| 6025.135.006 | PL5-135-6F | 135,0 | 60 | 149,0 | 240 | 15 | 1,180 | 1 |
| 6025.135.010 | PL5-135-10F | 135,0 | 100 | 149,0 | 400 | 15 | 1,180 | 1 |
| 6025.135.012 | PL5-135-12F | 135,0 | 120 | 149,0 | 500 | 15 | 1,180 | 1 |
| 6025.135.015 | PL5-135-15F | 135,0 | 150 | 149,0 | 600 | 15 | 1,180 | 1 |
| 6025.135.020 | PL5-135-20F | 135,0 | 200 | 149,0 | 800 | 15 | 1,180 | 1 |
| 6025.135.025 | PL5-135-25F | 135,0 | 250 | 149,0 | 1000 | 15 | 1,180 | 1 |
| 6025.177.006 | PL5-177-6F | 177,0 | 60 | 191,0 | 240 | 21 | 1,290 | 1 |
| 6025.177.010 | PL5-177-10F | 177,0 | 100 | 191,0 | 400 | 21 | 1,290 | 1 |
| 6025.177.012 | PL5-177-12F | 177,0 | 120 | 191,0 | 500 | 21 | 1,290 | 1 |
| 6025.177.015 | PL5-177-15F | 177,0 | 150 | 191,0 | 600 | 21 | 1,290 | 1 |
| 6025.177.020 | PL5-177-20F | 177,0 | 200 | 191,0 | 800 | 21 | 1,290 | 1 |
| 6025.177.025 | PL5-177-25F | 177,0 | 250 | 191,0 | 1000 | 21 | 1,290 | 1 |
