Cable Entry System

Cable entry systems

________________________________________________________________________________________________

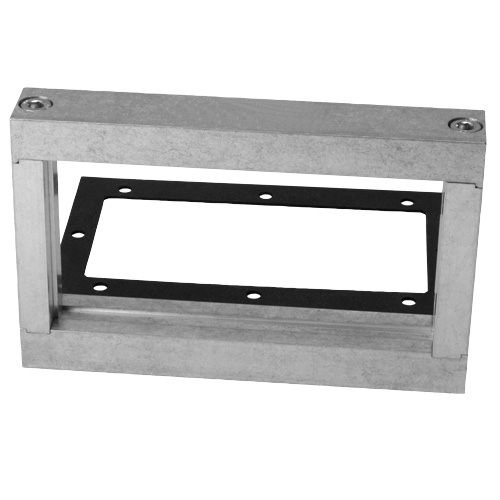

FFR-AL-UL-ATEX

Clamping frame for cable entry with

strain-relief, simple, trouble free assembly

of cables, the system can be assembled and

mounted on-site after construction, simple

assembly of clamping inserts through a

specially designed tongue and groove system,

incl. flat sealing and screws

Material: AIMgSi 0,5 aluminium
Temperature: -40°C ... +100°C
Protective rate [acc. to EN 6052]: IP65

________________________________________________________________________________________________________________________

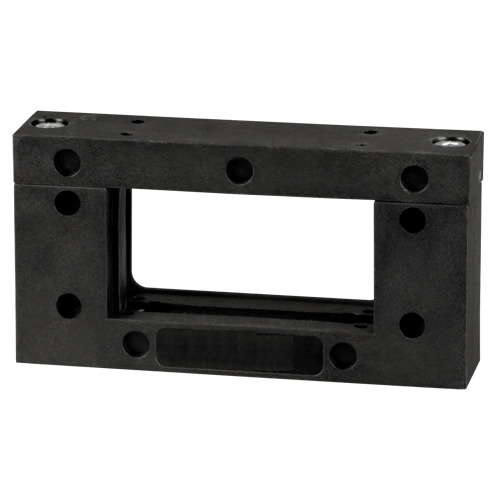

FFR-PA
Clamping frame for cable entry with

strain-relief, simple, trouble free assembly

of cables, the system can be assembled and

mounted on-site after construction, patented

clamping inserts make it highly adaptable to

all situations, incl. flat sealing and screws

Material: PA 6 GF50 plastics
Temperature: -40°C ... +100°C
Protective rate [acc. to EN 60529]: IP64

________________________________________________________________________________________________________________________

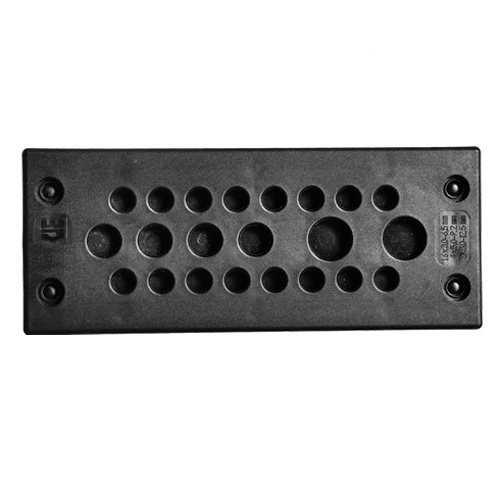

FFKEP-PA
Cable entry plate, an alternative system

for the insertion and sealing of cables for

enclosures, machines and control cabinets

without any tools

Material: PA 6 GF50 plastics | plate:

elastomer | sealing TPE
Temperature: -30°C ... +100°C
Protective rate [acc. to EN 60529]: IP 66

________________________________________________________________________________________________________________________

FFR-TPE-V0
Protective all-plastic tubing
internally and externally corrugated
fine or coarse profile
standard, for almost all applications

Material: PA6 plastics
-40°C...+120°C ^ ... 150°C
Protective rate [acc. to EN 60529]: IP 68 | IP 69K

________________________________________________________________________________________________________________________

FFEK-TPE-V0-RAIL
Protective all-plastic tubing
internally and externally corrugated
fine or coarse profile
standard, for almost all applications

Material: PA6 plastics
Temperature: -25°C...+200°C
Protective rate [acc. to EN 60529]: IP 68 | IP 69K

________________________________________________________________________________________________________________________

FFEK-TPE-V0
Protective all-plastic tubing
internally and externally corrugated
fine or coarse profile
standard, for almost all applications
