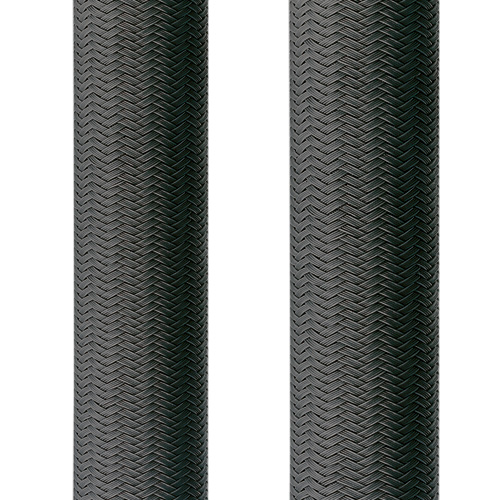

HG-PA Wire braiding consisting of round braided monofiles with double crossed looping at the different braiding angles, Coverage: >85%

Material: polyamide 6.6 monofilesl Temperature: -50°C ... +120°C ^ +150°C Protective rate [acc. to EN 6052]: IP 40

 ________________________________________________________________________________________________________________________

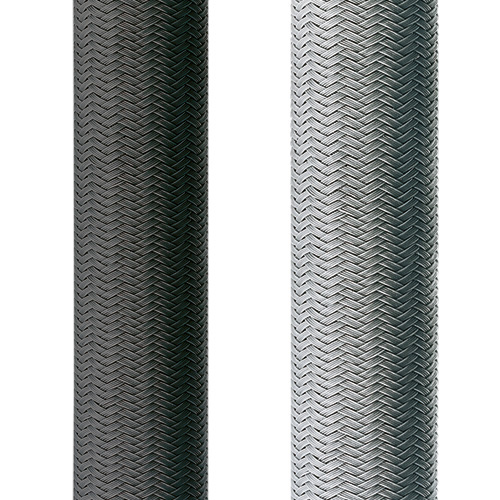

HG-PETO22 Wire braiding consisting of round braided monofiles with double crossed looping at the different braiding angles, Coverage: >85%

Material: PET-Monofile, Durchmesser 0,22 mm Temperature: -50°C ... +120°C ^ 150°C

 ________________________________________________________________________________________________________________________

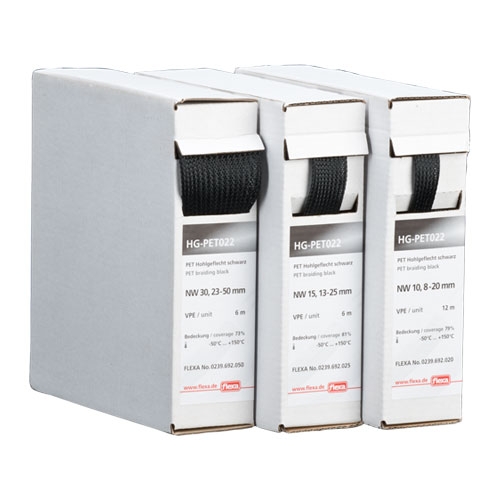

HG-PETO22 dispenser box Wire braiding consisting of round braided monofiles with double crossed looping at the different braiding angles, Coverage: >85%

Material: PET-Monofile, Durchmesser 0,22 mm Temperature: -50°C ... +120°C ^ 150°C

 ________________________________________________________________________________________________________________________

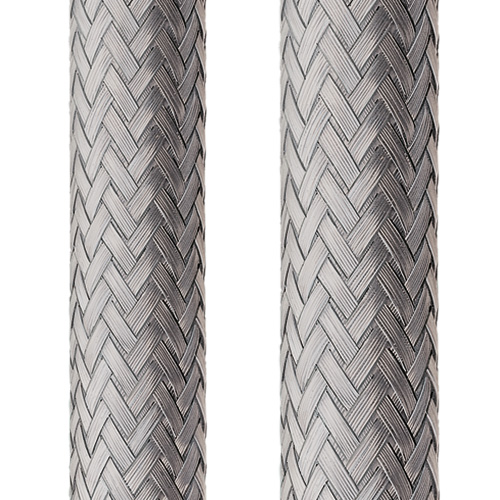

HG-CU Wire braiding consisting of round braided tinned-copper wires with double crossed looping at the different braiding angles, Coverage: >85%

Material: tinned copper Temperature: -50°C ... +250°C

 ________________________________________________________________________________________________________________________

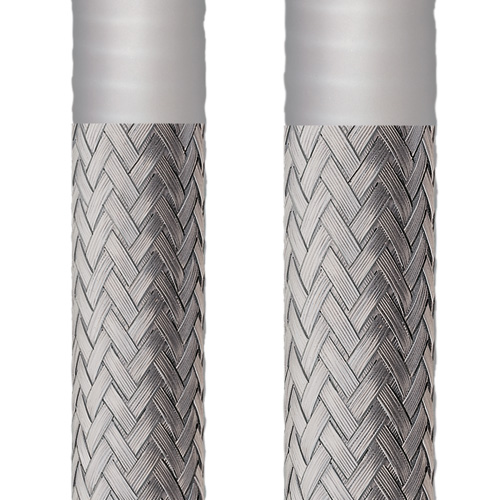

HG-CU-K Wire braiding with PVC carrier conduit consisting of round braided tinned-copper wires with double crossed looping at the different braiding angles, Coverage: >85%

Material: tinned copper | PVC Temperature: -50°C ... +250°C

 ________________________________________________________________________________________________________________________

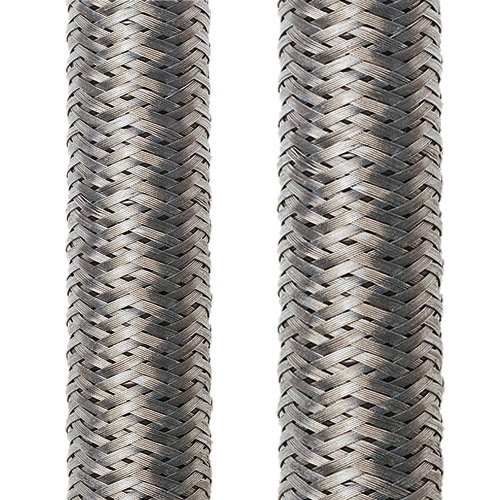

HG-EDU Wire braiding consisting of round  braided galvanized steel wires with double crossed looping at the different braiding angles, Coverage: >85%

Material: galvanized steel Temperature: -50°C ... +250°C

 ________________________________________________________________________________________________________________________

SPR-VA-PVC Protective metal conduit for the sensor technology, strip-wound, s profile, PVC   sheathing, non flame propagating acc. to DIN EN IEC 61386-23

Material: stainless steel | PVC Temperature: -25°C ... +90°C ^ +100°C

 ________________________________________________________________________________________________________________________

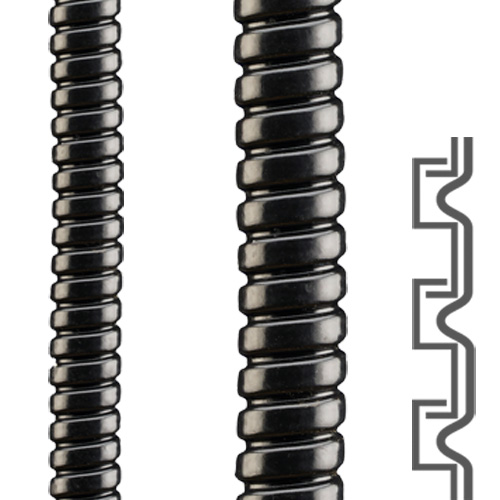

SPR-VA-EL Protective metal conduit for the sensor technology, strip-wound, s profile, electrical conductive PVC sheathing, V2 (UL 94)

Material: stainless steel | PVC Temperature: -25°C ... +80°C ^ +100°C

 ________________________________________________________________________________________________________________________

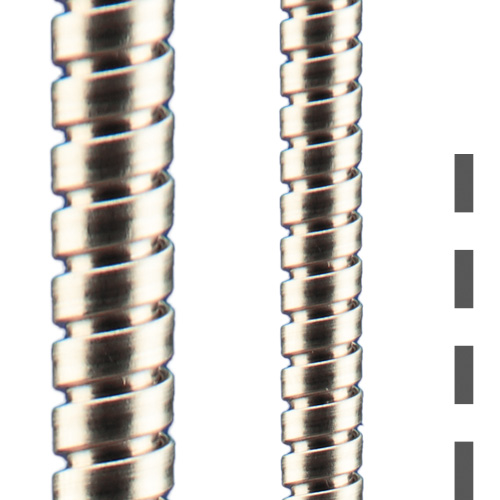

FDW-VA Special protective conduit helix for the sensor technology and the beam wave guide technology

Material: stainless steel Temperature: -200°C ... +600°C

 ________________________________________________________________________________________________________________________

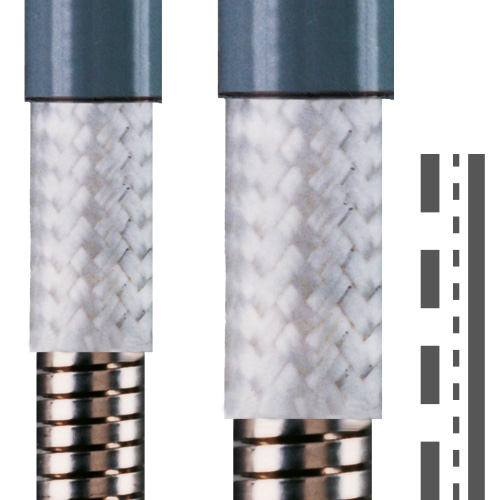

PS-VA Special protective conduit for the sensor technology and and the beam wave guide technology, helix made of stainless steel, fiber glass braiding, silicone rubber sheathing

Material: stainless steel V2A | Braiding: fiber glass | Sheathing: silicone-rubber Temperature:-50°C...+180°C Protection class [acc. to EN 60529]:IP 68

 ________________________________________________________________________________________________________________________

PSL-VA Special protective conduit for the sensor technology and and the beam wave guide technology, helix made of stainless steel, fiber glass braiding, silicone rubber sheathing

Material: stainless steel V2A | Braiding: fiber glass | Sheathing: silicone-rubberer Temperature:-50°C...+180°C Protection class [acc. to EN 60529]:IP 68

 ________________________________________________________________________________________________________________________

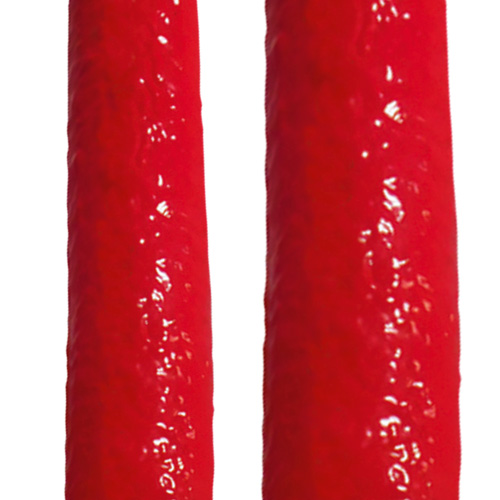

FLEXAhightemp Fire protection conduit, non-flammable, calcium-silicate braiding with silicone sheathing

Material:calcium-silicate | SI Temperature:-50°C ... +350°C ^ +700°C

  ________________________________________________________________________________________________________________________

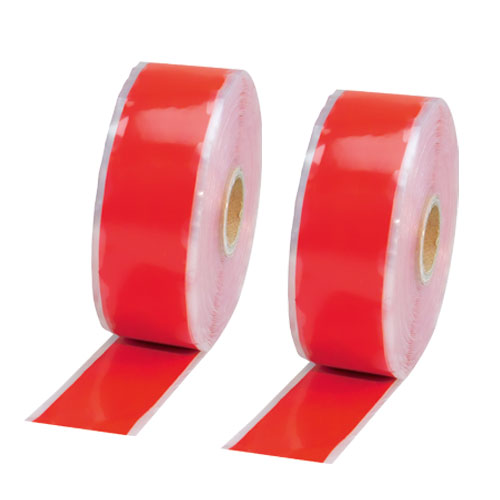

FLEXAhightemp tape Tape with tightly woven selvedges, thickness: 2-3 mm

Material: fireblocker coating aramid or calcium-silikate Temperature: -50°C...+300°C, ^ +700°C

 _____________________________________________________________________________________________________

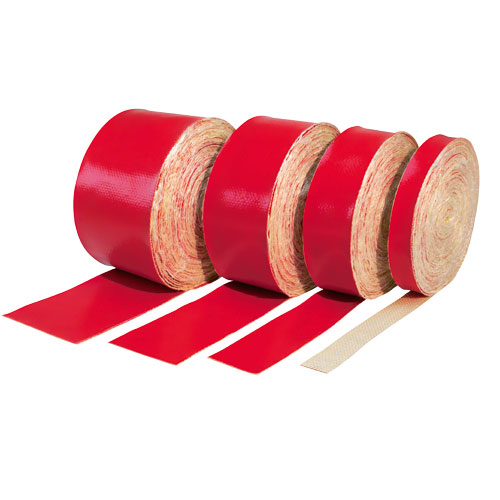

FLEXAhightemp wrapping tape Wrapping tape for fastening of fire protection conduit FLEXAhightemp

Material: calcium-silicate with silicone coating aramid or calcium-silikate Temperature: -50°C...+300°C

 _____________________________________________________________________________________________________

FLEXAspiralPE Spiral bindings, bundels and binds single wires, protect wire harnesses, wires and lines

Material: LD-Polyethylen PE Temperature: -40°C ... +90°C ^ +100°C

_____________________________________________________________________________________________________

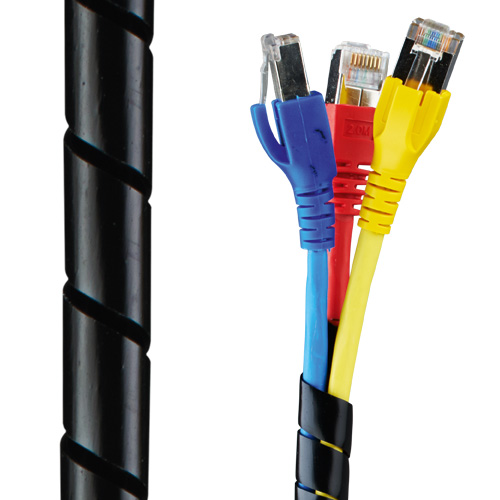

FLEXAspiralPA12 Spiral bindings, bundels and binds single wires, protect wire harnesses, wires and lines

Material: Polyamide PA 12 Temperature: -40°C...+100° ^ +130°C
